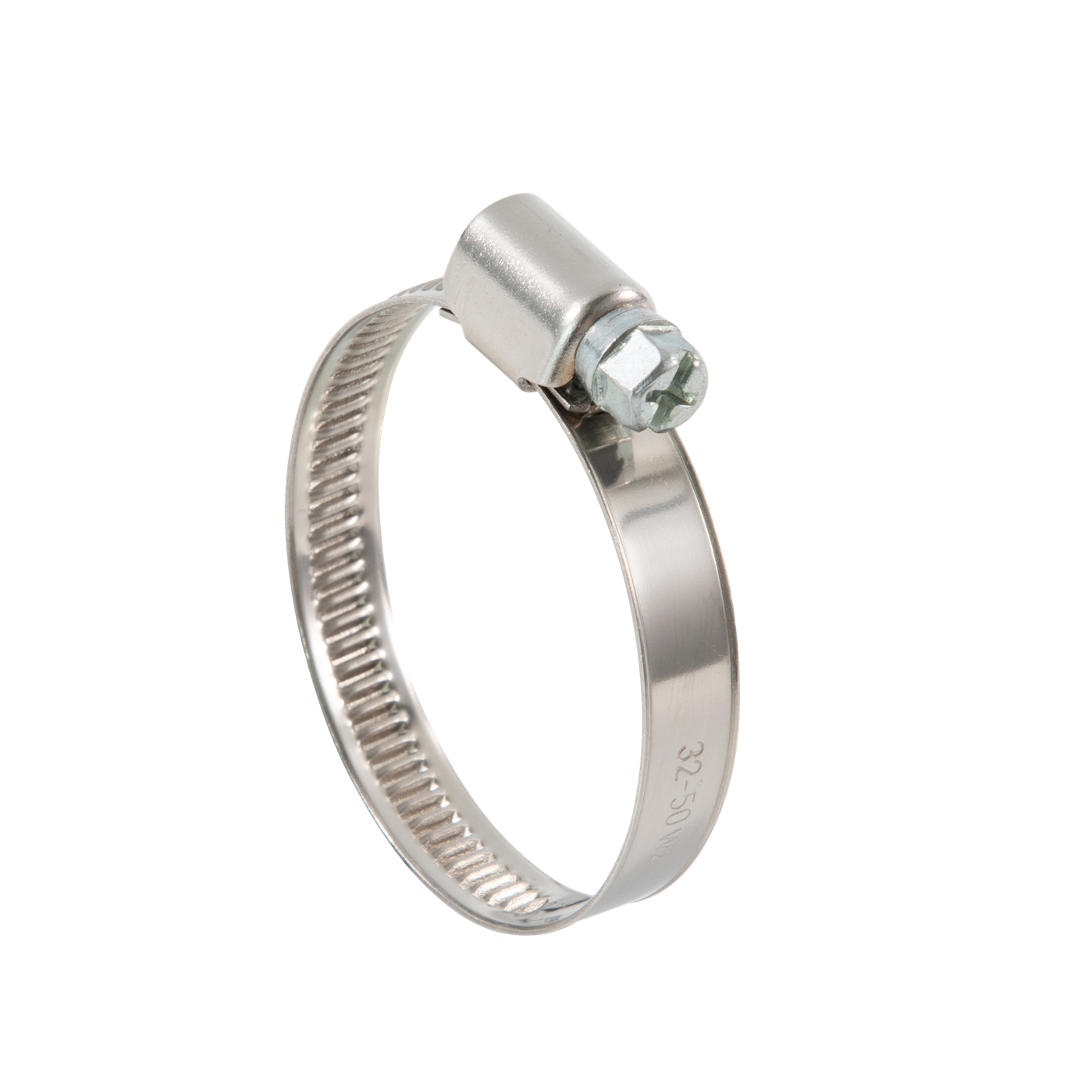

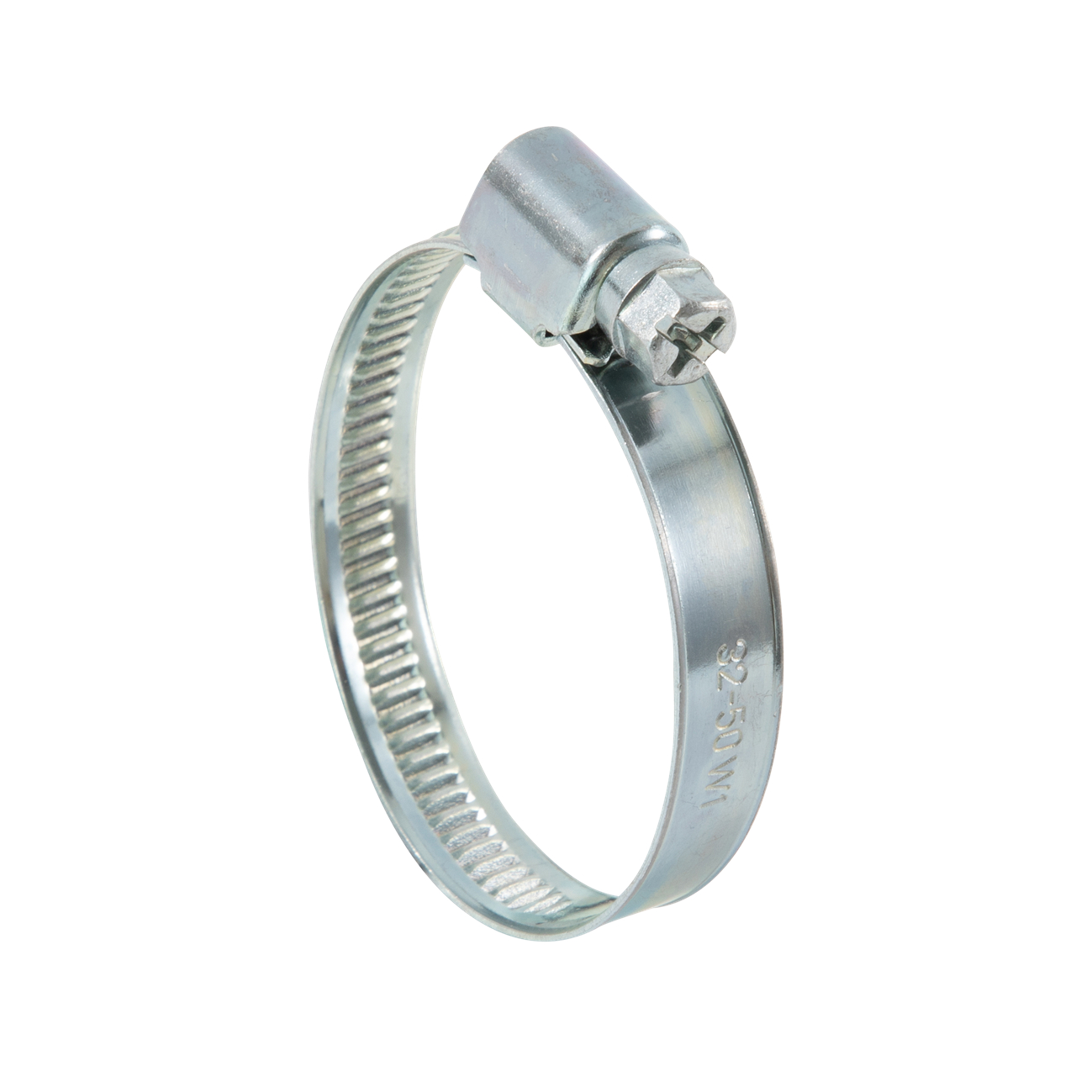

| DS01德式中间式9mm带宽(9mm non-perforated type with welded housing design) | ||||||
| 加紧范围 size | 产品货号 ItemNo | 只/袋 | 只/箱 | |||
| mm | W1 | W2 | W4 | W5 | pcs/bag | pcs/carton |
| 8-12 | DS01A9812 | DS01B9812 | DS01D9812 | DS01E9812 | 100 | 1000 |
| 10-16 | DS01A91016 | DS01B91016 | DS01D91016 | DS01E91016 | 100 | 1000 |
| 12-22 | DS01A91222 | DS01B91222 | DS01D91222 | DS01E91222 | 100 | 1000 |
| 16-27 | DS01A91627 | DS01B91627 | DS01D91627 | DS01E91627 | 100 | 1000 |
| 20-32 | DS01A92032 | DS01B92032 | DS01D92032 | DS01E92032 | 50 | 1000 |
| 25-40 | DS01A92540 | DS01B92540 | DS01D92540 | DS01E92540 | 50 | 500 |
| 30-45 | DS01A93045 | DS01B93045 | DS01D93045 | DS01E93045 | 50 | 500 |
| 35-50 | DS01A93550 | DS01B93550 | DS01D93550 | DS01E93550 | 50 | 500 |
| 40-60 | DS01A94060 | DS01B94060 | DS01D94060 | DS01E94060 | 50 | 500 |
| 50-70 | DS01A95070 | DS01B95070 | DS01D95070 | DS01E95070 | 50 | 500 |
| 60-80 | DS01A96080 | DS01B96080 | DS01D96080 | DS01E96080 | 10 | 500 |
| 70-90 | DS01A97090 | DS01B97090 | DS01D97090 | DS01E97090 | 10 | 500 |
| 80-100 | DS01A980100 | DS01B980100 | DS01D980100 | DS01E980100 | 10 | 250 |
| 90-110 | DS01A990110 | DS01B990110 | DS01D990110 | DS01E990110 | 10 | 250 |
| 100-120 | DS01A9100120 | DS01B9100120 | DS01D9100120 | DS01E9100120 | 10 | 250 |
| 110-130 | DS01A9110130 | DS01B9110130 | DS01D9110130 | DS01E9110130 | 10 | 250 |
| 120-140 | DS01A9120140 | DS01B9120140 | DS01D9120140 | DS01E9120140 | 10 | 250 |
| 130-150 | DS01A9130150 | DS01B9130150 | DS01D9130150 | DS01E9130150 | 10 | 250 |
| 140-160 | DS01A9140160 | DS01B9140160 | DS01D9140160 | DS01E9140160 | 10 | 200 |
| 材质 Material | 钢带 Band | 箍头 Housing | 螺丝 Screw | 建议安装扭力 suggested install torque |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | φx≤φ25 3.0Nm φx≥φ27 3.5Nm |
| W2 | AISI 430SS/203SS | AISI 430SS/203SS | Zinc plated steel | |
| W4 | AISI 301SS/304SS | AISI 301SS/304SS | AISI 301SS/304SS | φx≤φ25 4.0Nm φx≥φ27 5.0Nm |
